| Allmänt |

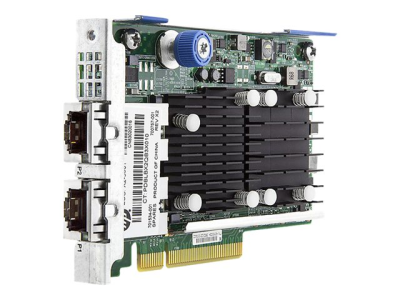

| Typ av enhet | Nätverksadapter |
| Formfaktor | Instickskort |
| Gränssnittstyp (buss) | PCI Express 2.0 x8 |
| Version av PCI-specifikation | PCIe 2.0 |
| Nätverk |
| Portar | 10Gb Ethernet x 2 |
| Anslutningsteknik | Kabelansluten |
| Typ av kablage | Ethernet 10GBase-T |
| Datalänkprotokoll | Gigabit Ethernet, 10 Gigabit Ethernet |
| Dataöverföringshastighet | 10 Gbps |
| Statusindikatorer | Portstatus, länk/akvititet |
| Funktioner | Auto-negotiation, Jumbo Frames-support, PXE-support, Large Send Offload (LSO), Receive Side Scaling (RSS), TCP Segmentation Offload (TSO) |
| Standarder som följs | IEEE 802.3, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IEEE 802.1Qbg, IEEE 802.2x |
| Processor / Minne |
| Processor | 1 x Broadcom BCM57810S |
| RAM | 256 MB |
| Expansion/Anslutning |
| Gränssnitt | 2 x 10GBase-T - RJ-45 |
| Diverse |
| Standarder som följs | FCC klass A-certifierad, UL, VCCI klass A ITE, EN55024, EN55022 klass A, ICES-003 klass A, WEEE, RoHS, BSMI Class A, EN 61000-3-2:2006, EN 61000-3-3:2008 |
| Programvara / Systemkrav |
| Operativsystem erfordras | SuSE Linux Enterprise Server 11 for x86/AMD64/Intel EM64T, SuSE Linux Enterprise Server 10 for x86/AMD64/Intel EM64T, Microsoft Windows Server 2008, Microsoft Windows HPC Server 2008, Microsoft Windows Small Business Server 2011 Standard, Microsoft Windows Small Business Server 2011 Essentials, Microsoft Windows MultiPoint Server 2011, Oracle Solaris 10, Red Hat Enterprise Linux 6.1, Red Hat Enterprise Linux 6.2, Red Hat Enterprise Linux 5.7, Citrix XenServer 6.0, Microsoft Windows Server 2012, Red Hat Enterprise Linux 5.8, Red Hat Enterprise Linux 5.9, Red Hat Enterprise Linux 6.3, Citrix XenServer 6.1, VMware vSphere 5.0, VMware vSphere 4.1 |
| Tillverkarens garanti |
| Service och support | Begränsad garanti - 1 år |
| Miljöparametrar |
| Min temperatur vid drift | 0 °C |
| Max temperatur vid drift | 55 °C |
| Luftfuktighet vid drift | 5 - 95 % (icke-kondenserande) |
| Kompatibilitetsinformation |
| Designat för | HPE Apollo 4200 Gen9 for Google, 4520 Gen9
HPE ProLiant DL180 Gen10, DL180 Gen10 Entry, DL180 Gen10 SMB, DL180 Gen9, DL180 Gen9 Base, DL180 Gen9 Entry, DL180 Gen9 Storage, DL20 Gen10, DL20 Gen10 Entry, DL20 Gen10 Performance, DL20 Gen10 solution, DL20 Gen9, DL20 Gen9 Entry, DL20 Gen9 Performance, DL20 Gen9 Solution, DL325 Gen10 Base, DL325 Gen10 Solution, DL360 Gen10, DL360 Gen10 Base, DL360 Gen10 Entry, DL360 Gen10 High Performance, DL360 Gen10 Low, DL360 Gen10 Network Choice, DL360 Gen10 Performance, DL360 Gen10 SMB, DL360 Gen10 SMB Network Choice, DL360 Gen10 Solution, DL360p Gen8, DL360p Gen8 CMS, DL360p Gen8 Performance, DL360p Gen8 Special Server, DL380 Gen10, DL380 Gen10 All Flash Server for Datera, DL380 Gen10 Base, DL380 Gen10 Entry, DL380 Gen10 Entry SMB, DL380 Gen10 for Cohesity DataPlatform, DL380 Gen10 High Performance, DL380 Gen10 Hybrid Server for Datera, DL380 Gen10 Network Choice, DL380 Gen10 Network Choice for CTERA, DL380 Gen10 NVMe All Flash Server for Datera, DL380 Gen10 Performance, DL380 Gen10 Server for CTERA, DL380 Gen10 SMB, DL380 Gen10 SMB Networking Choice, DL380 Gen10 Solution, DL380 Gen9 High Performance, DL388 Gen10 Network Choice, DL560 Gen10, DL560 Gen10 Base, DL560 Gen10 Entry, DL560 Gen10 Performance, DL560 Gen9, DL560 Gen9 Base, DL560 Gen9 Entry, DL560 Gen9 Performance, DL580 Gen10, DL580 Gen10 Base, DL580 Gen10 Entry, DL580 Gen10 Performance, DL80 Gen9 Entry, XL170r Gen10, XL170r Gen10 24TB Server for Cohesity DataPlatform, XL170r Gen10 Server for BlueData EPIC, XL170r Gen9, XL190r Gen10, XL190r Gen10 for HPE Ezmeral Container Platform, XL190r Gen9, XL230a Gen9 Compute Tray, XL230a Gen9 Compute Tray (12G), XL230a Gen9 Compute Tray (6G), XL230a Gen9 NHP Compute Tray (12G), XL450 Gen10
HPE SimpliVity 325 Gen10 Node, 380 Gen10 G Node, 380 Gen10 Network Choice G Node, 380 Gen10 Network Choice H Node, 380 Gen10 Node
HPE StoreEasy 1850, 3850 Gateway Single Node |
|
